6 BAR Honeywell Map Sensor
Product Code: H-MAP6-HMIP
$132.00
inc GST for Australian CustomersAUD $120.00 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $120.00 (ex GST)
for International Customers
63.55
GBP75.96
EUR150.46
NZD13,366.58
JPY84.62
USD
GBP75.96
EUR150.46
NZD13,366.58
JPY84.62
USD
approximate only
Options:
All variations of this product are currently out of stock.

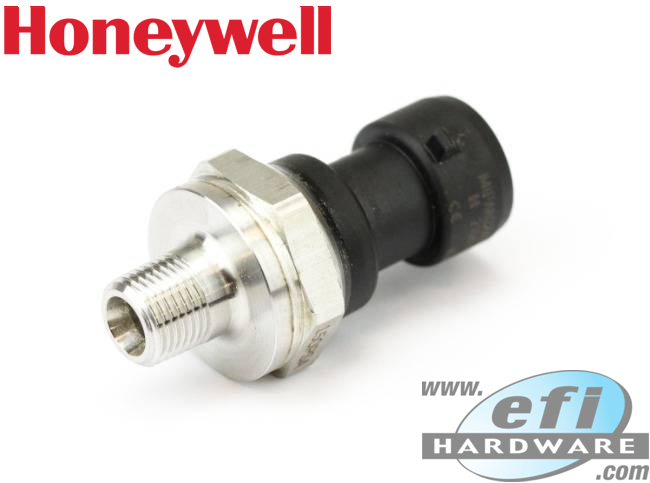

Honeywell MIP Series compact 6 Bar MAP sensor. Fuel, Oil, Brake Fluid and Coolant compatible.
Honeywell P/N MIPAN2XX006BAAAX
Details
Specifications:
Maximum Pressure - 6 Bar Boost Pressure
Calibration:
0PSIA (00kpa) = 0.500V
72.5PSIA (500kpa) = 4.500V
Thread: 1/8NPT
Nut: 22mm Hex
RELATED PARTS:
| PART NUMBER | DESCRIPTION | IMAGE |
| TECH DOCUMENTS | TECHNICAL DOCUMENTS |  |
| H-SEN-MSC | Motorsport series sensor connector |  |
| S-140-06 | -6 adapter with sensor port |  |
| S-140-08 | -8 adapter with sensor port |  |
| S-370-03-BLK | -3 male to 1/8" NPT female adapter |  |
| S-912-M12-2-02-S | M12 x 1.25 to 1/8" NPT reducer |  |
| S-997-02-D | 1/8" NPT female weld on |  |
| S-997-02-S | 1/8" NPT female weld on |  |
