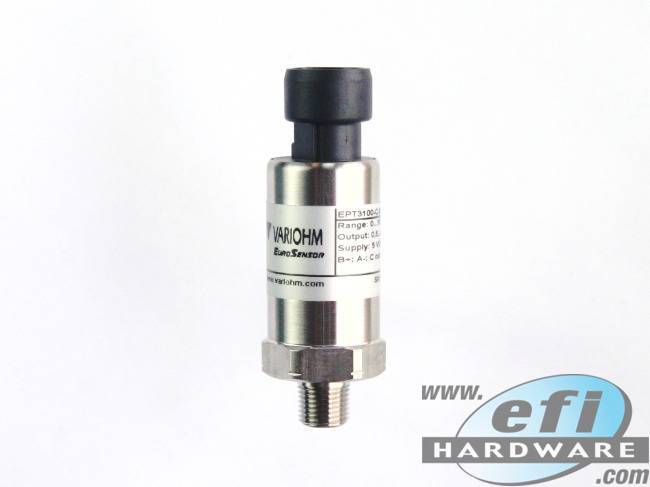

100 PSI Variohm Pressure Sensor

In Stock

Product Code: H-PS100G-VAR

$264.00
inc GST for Australian Customers
AUD $240.00 (ex GST)
for International Customers
138.97
GBP
165.43
EUR
264.83
NZD
22,599.90
JPY
168.45
USD
approximate only?International prices are based on the tax exclusive amount, and are approximate only (may change when payment is processed).

All orders are charged in AUD

Options:


Variohm Brand Part Number EPT3100-0100-B-5-C
Pressure sensor to suit fluid or gas pressures, up to 100PSI Gauge Pressure (above atmospheric pressure).

Accuracy: < +/- 0.5% at (RT) Reaction Time

NOTE: For use with Coolant, Air, Oil and Most Fuels

Use with H-SEN-MSC plug.

Details

Specifications:

Pressure Range = 0-100 PSI Gauge Pressure

Over Pressure Range = 200 PSI Gauge Pressure

Burst Pressure = 500 PSI

Calibration:

0PSIG = 0.500V

100PSIG = 4.500V

Thread: 1/8NPT



RELATED PARTS / TECHNICAL DOCUMENTS:

PART NUMBERDESCRIPTIONIMAGE
TECH DOCUMENTSTECHNICAL DOCUMENTS
DATASHEETVARIOHM 3100 PRESSURE
SENSOR DATASHEET
H-SEN-BLOCK-2

2 Circuit Pressure Sensor Mounting Block

C03F-0004Motorsport series sensor connector
S-140-06-6 adapter with sensor port
S-140-08-8 adapter with sensor port
S-370-03-BLK-3 male to 1/8" NPT female adapter-3 male to 1/8 NPT female Speedflow
S-912-M12-2-02-SM12 x 1.25 to 1/8" NPT reducerM12 x 1.25 to 1/8 NPT Reducer
S-997-02-D1/8" NPT female weld on1/8 NPT Female Weld On Speedflow Fitting
S-997-02-S1/8" NPT female weld on1/8 NPT Female Weld On Steel
