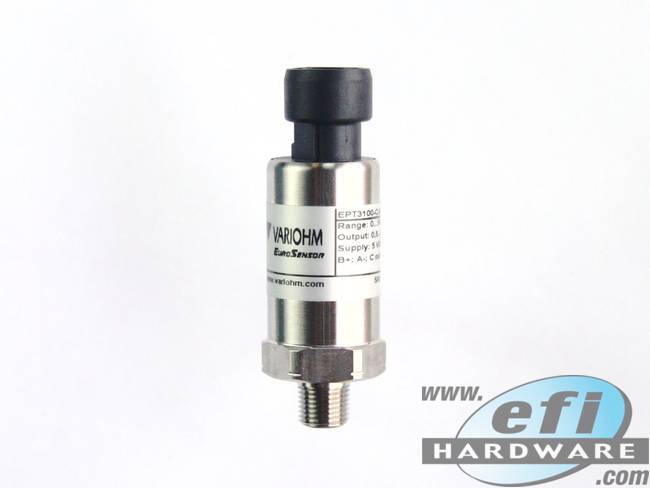

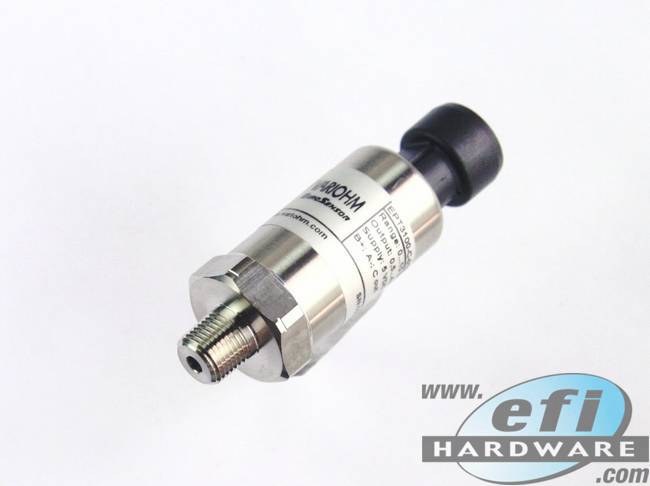

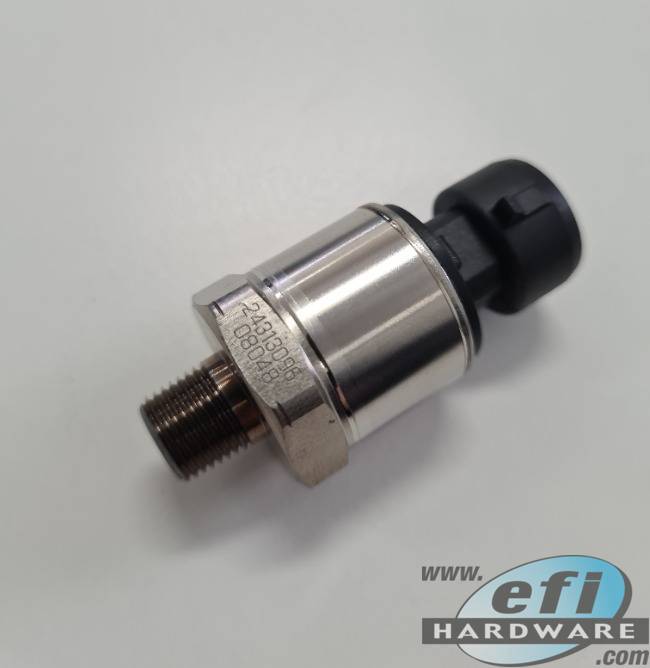

150 PSI Variohm Pressure Sensor EPT9200-C-01000-B-5-C
In Stock
Product Code: H-PS150G-VAR
$264.00
inc GST for Australian CustomersAUD $240.00 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $240.00 (ex GST)
for International Customers
121.26
GBP139.91
EUR278.07
NZD25,767.72
JPY165.48
USD
GBP139.91
EUR278.07
NZD25,767.72
JPY165.48
USD
approximate only
Options:
Variohm Brand - Part Number EPT9200-C-01000-B-5-C
PS-10B-EUSS-LM07B
Pressure sensor to suit fluid or gas pressures, up to 150PSI Gauge Pressure (above atmospheric pressure).
Accuracy: < +/- 0.5% at (RT) Reaction Time
NOTE: For use with Coolant, Air, Oil and Most Fuels
Use with C03F-0004 plug.
Details
Specifications:
Maximum Pressure - 150PSI Gauge Pressure
Calibration:
0PSIG = 0.500V
150PSIG = 4.500V
Thread: 1/8NPT
RELATED PARTS / TECHNICAL DOCUMENTS:
| PART NUMBER | DESCRIPTION | IMAGE |
| TECH DOCUMENTS | TECHNICAL DOCUMENTS |  |
| DATASHEET | VARIOHM 3100 PRESSURE SENSOR DATASHEET |  |
| H-SEN-BLOCK-2 | 2 Circuit Pressure Sensor Mounting Block |  |
| C03F-0004 | motorsport series sensor connector |  |
| S-140-06 | -6 adapter with sensor port |  |
| S-140-08 | -8 adapter with sensor port |  |
| S-370-03-BLK | -3 male to 1/8" NPT female adapter |  |
| S-912-M12-2-02-S | M12 x 1.25 to 1/8" NPT reducer |  |
| S-997-02-D | 1/8" NPT female weld on |  |
| S-997-02-S | 1/8" NPT female weld on |  |
