Product Code: 802-555
inc GST for Australian CustomersAUD $1,211.00 (ex GST)
for International Customers

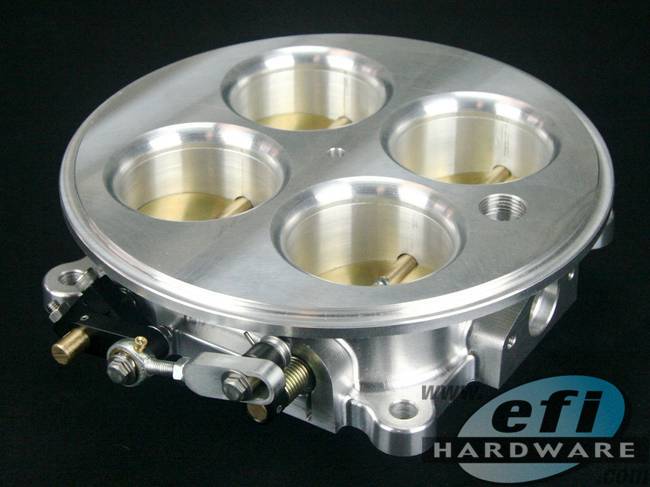

1600 CFM EFI Billet Throttle Body (Dominator).
Only 45mm tall with 4 x 55mm butterflies.
Primary/secondary opening - secondary opening @33%.
Other features include seals behind bearings, split screws secure butterflies for serviceability.
Accepts GM LS1 stepper motor for Idle control - throttle body is supplied with blanking plate for stepper motor port.
Fits manifolds to suit Dominator pattern.
NOTE: TPS, Cable Pulley and Stepper Motor are Optional and not supplied with this 4 Barrel Throttle Body.
WHAT'S IN THE BOX:
1 x 1600CFM 4 Barrel Billet Throttle Body (55mm Throttle Plates)
Every single throttle bore and throttle plate are measured and matched as a pair to ensure the most perfect throttle fit and consistency across every EFI Hardware throttle body.
Note: Does not include injectors, TPS, idle stepper motor, cable pull or hose fittings on end of fuel rails.
Use with Part # H-TPSD throttle position sensor kit.
AIR FILTER MOUNT: The Air Filter Mounting Flange Face is 127mm internal diameter and 137mm outside diameter. There is a central post hole that is 1/4"UNC thread and 18mm deep.
The Air Filter Mounting Flange is compatible with air filters designed to fit Holley and Rochester Carburetors.
We recommend Part # 811-066 Cable pulley to connect to your throttle cable.
|811-066||cable pull with opposite link|
Using the Cable Pulley with Opposite Link on a 4BBL Throttle Body for Auto Transmission Kickdown:
One of the most common applications for the Cable Pulley with Opposite Link (811-066) is when you run a 4 Barrel Throttle Body and an Automatic Transmission. If the Automatic Transmission uses a Kickdown Cable, you will need a way to control the Kickdown Cable.
One of the easiest ways to achieve this is to use the Opposite Link on the 811-066 and connect your Transmission Kickdown Cable directly to either of the two treaded holes on the Opposite Link.
You may need to try both holes to find the one that gives you the best control over the kickdown cable to give the most natural kickdown actuation. You may also need to adjust the amount of "takeup" on the cable before it goes tight to fine tune the kickdown actuation.
These are Billet Aluminium and CNC machined to precise tolerances, then assembled and quality checked before shipping by us at EFI Hardware in Melbourne. Unlike cheap imports that run through parent metal, the shafts on EFI Hardware throttle bodies run on bearings with lip seals behind and are fully serviceable.
EFI Hardware now produce 6° Throttle Plates.
In the past, 12° throttle plates were the industry standard. The problem with 12° throttle plates, is that as the plates are moved off the closed position, the change in airflow is huge. It makes it very difficult to drive smoothly at lower throttle openings.
At EFI Hardware, we only use 6° throttle plates. This improves off idle and cruise driveability making your vehicle far more enjoyable to drive.
BOOSTED VS NATURALLY ASPIRATED:
We have lip seals behind the throttle shaft bearings to stop grease from being sucked out of the bearings under high intake runner vacuum. These are turned around on boosted applications so there is no boost leakage and also stops the bearing grease getting evacuated from the throttle shaft the bearings.
We ask you if you are going to run your engine Boosted, or Naturally Aspirated so we can install the Lip Seals in your throttle bodies in the appropriate way to suit your application.
We now recommend and use SKF bearings.
