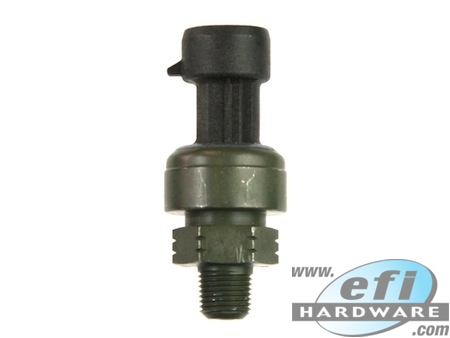

250 PSI TI Pressure Sensor
Product Code: H-PS250G-TI
inc GST for Australian CustomersAUD $220.00 (ex GST)
for International Customers
GBP140.43
EUR234.34
NZD18,070.42
JPY169.52
USD
Bulk Pricing:
1+ | $220.00 |
2+ | $210.00 |
5+ | $205.00 |
Pressure sensor to suit fluid or gas pressures, up to 250PSI Gauge Pressure (above atmospheric pressure). Use with H-SEN-MSC plug Ti Part Number 63C022 0250GUNA0
Specifications:
Maximum Pressure - 250PSI Gauge Pressure
Calibration:
0PSIG = 0.500V
250PSIG = 4.500V
Thread: 1/8NPT
Locking Nut: 17mm Hex
RELATED PARTS:
PART NUMBER | DESCRIPTION | IMAGE |
TECH DOCUMENTS | TECHNICAL DOCUMENTS | ![]() |
H-SEN-MSC | motorsport series sensor connector | ![]() |
S-140-06 | -6 adapter with sensor port | ![]() |
S-140-08 | -8 adapter with sensor port | ![]() |
S-370-03-BLK | -3 male to 1/8" NPT female adapter | ![]() |
S-912-M12-2-02-S | M12 x 1.25 to 1/8" NPT reducer | ![]() |
S-997-02-D | 1/8" NPT female weld on | ![]() |
S-997-02-S | 1/8" NPT female weld on | ![]() |
