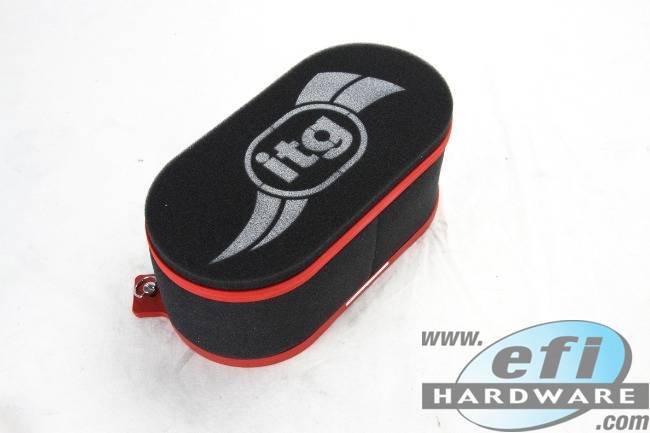

ITG JC30 Air Filter - Suit Single Carb or Throttle
Product Code: 835-403-JC30-100
inc GST for Australian CustomersAUD $300.00 (ex GST)
for International Customers
GBP169.88
EUR323.99
NZD27,508.06
JPY192.34
USD
ITG filter JC30/100
Internal height = 100mm
Suitable for use with a single Carburetor/throttle
ITG Megaflow foam air filter for JC30 size base plate. The JC30 model of ITG Air Filter is designed to suit one carburettor. These famous red-band air filters, for road and race use, are easily recognisable by their twin red bands around the top and bottom. These bands are the visible part of two fibre-reinforced nylon injection mouldings which for the structure on which ITG's unique TriFoam air filter material is bonded.
The two outer layers of foam provide optimum filtration and load-up capacity whilst the inner layer is made from special self-extinguishing foam. These two layers combined give the very best air flow, engine protection and safety.
The ITG JC30 Air Filters are available in differing heights to help fitment for your application. We keep stock of the 100mm filter as we have found this to be the filter height most commonly asked for.
ITG recommend fitting the tallest element possible, though a gap of 13mm (1/2") average must be left over the top of the filter for air to circulate. When using Ram pipes, there must be an absolute minimum gap of 19mm (3/4"), but preferably around 32mm (1 1/4") between the end of the ram pipe and the underside of the top of the filter.
