Billet Twin Fuel Pump Hanger

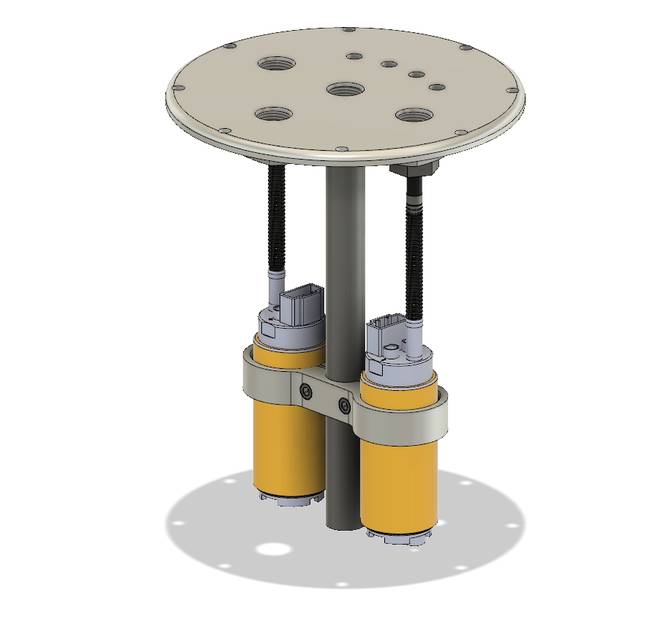

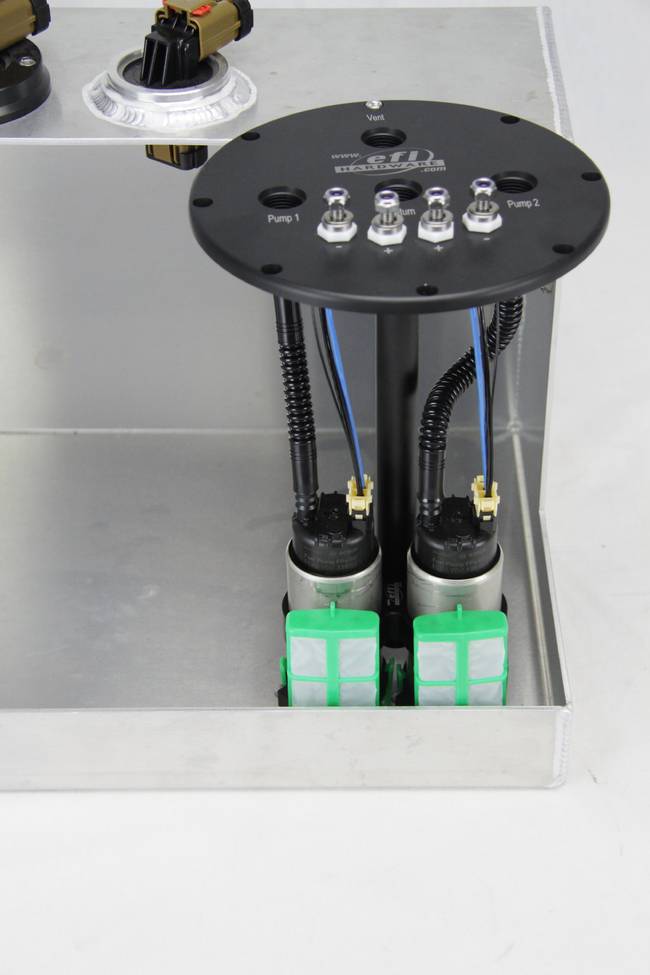

Weld in twin fuel pump hanger kit.

Option for steel or aluminium weld in rings supplied with the kit. Bolt on adapter available on special request.

Modular design with option for either 39mm OD fuel pumps such as Walbro / TI Automotive 255lph , 460LPH &525 LPH or Bosch Motorsport BR540 46mm OD fuel pumps.

Pierburg lift pumps (864-950) will fit with included sleeve.

2x pairs of electrical bulkhead terminals are included. This will allow for staging of pumps. (max 25amp per circuit)



What’s in the box.

• You choice of a mild steel or aluminium weld on flange
• A bulkhead lid with 4x -8orb to -8 male fittings. (We can also supply in -6 male if requested)
  • 2x supply, 1x return and 1x vent or overflow port
  • 2x -8orb to male 3/8" hose tail barbs (We can also supply these is 1/2" hose tails if requested)
• A Fuel pump clamp with intergraded O-rings to dampen excessive noise. Your choice of either:  Bosch BR540 46mm OD or a Walbro/TI 39mm OD sized clamp
• 4x Hi-amp electrical bulkhead terminals
• Clamp support post with integrated return line.

(pumps & hoses not included)
