Product Code: 866-800E
inc GST for Australian CustomersAUD $220.00 (ex GST)
for International Customers
Walbro 450 Or Walbro 460
These Walbro TI Automotive fuel pumps are commonly referred to as a Walbro 450 or Walbro 460 fuel pump and are E85 compatible high-performance units.
E85, Flex Fuel and Gasoline compatible fuel pump that flows 450 L/Hr.
E85 - 800HP
Gasoline - 950HP
Manufacturer- Walbro PN F9000267
Walbro 460 / Walbro 450 Fuel Pump
This is a hugely popular in-tank E85 compatible fuel pump capable of supplying 450 L/Hr.
This pump is great for E85, E10, Any Flex Fuel and Gasoline/Petrol. EFI Hardware only supply genuine Walbro Pumbs with 1 year manufacturer warranty.
E85 - 800Hp Efi Submersible E85, Flex Fuel And Gasoline High Flow Fuel Pump
1 x E85 Compatible Fuel Pump
1 x Fuel Proof Connector
1 x Filter Sock
INLET OD: 11.1mm
OUTLET: Suits 9mm (3/8") Hose

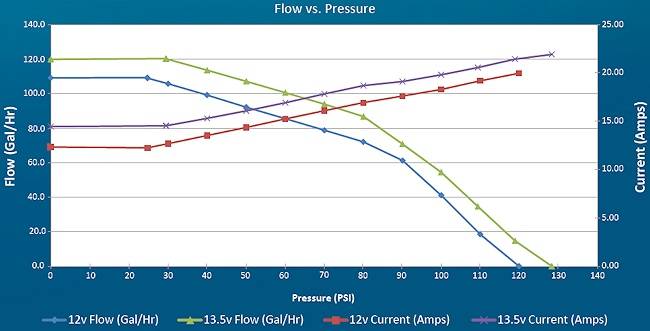

FUEL FLOW AND CURRENT RATINGS:
Charts from Walbro Fuel Pumps
ENGINE POWER DELIVERY:
Different fuels and engine configurations change the amount of fuel required to produce a specific amount of engine power. The table below indicates most of the variations of fuels and engine setups. Choose the engine and fuel type that most accurately matches the engine set up in your vehicle.
NOTE: Most supercharger applications require a large amount of power to run the supercharger. Consult with your supercharger supplier for the amount of power your supercharger will consume and subtract that amount of power from the table below.
NOTE: All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine.
|PETROL / GASOLINE||E85|
|Naturally Aspirated||1072HP / 799KW||Naturally Aspirated||800HP / 596KW|
|Up To 1 Bar Boost||839HP / 626KW||Up To 1 Bar Boost||615HP / 459KW|
|1 to 2 Bar Boost||775HP / 578KW||1 to 2 Bar Boost||548HP / 408KW|
NEED MORE FUEL FLOW AT HIGH BOOST THAN THE WALBRO 450 CAN DELIVER?

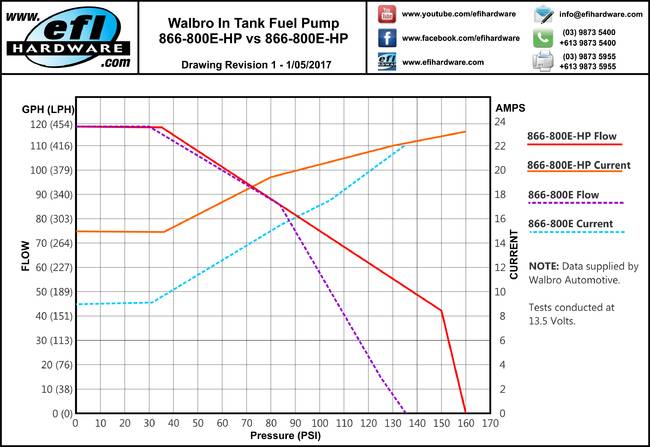

Check out the diagram below showing how the 866-800E-HP outperforms the 866-800E above 85PSI fuel pressure.
FUEL PUMP ACCESSORIES AND DATA SHEETS:
|C-02FRWALBRO-2||Walbro Fuel Pump Wiring Connector|
|866-800E-HP||Walbro 450 High Output Pump|
|DATASHEET||Walbro Fuel Pump Datasheet|
