Bosch DBW Pedal Assembly

In Stock

Product Code: 804-200

$132.00$99.00
inc GST for Australian Customers
$120.00AUD $90.00 (ex GST)
for International Customers
61.76
46.32
GBP
72.09
54.07
EUR
130.46
97.84
NZD
11,833.93
8,875.45
JPY
76.69
57.52
USD
approximate only?International prices are based on the tax exclusive amount, and are approximate only (may change when payment is processed).

All orders are charged in AUD

Options:


Bosch Motorsport Accelerator Pedal Module.
Bosch #0 280 755 051
Universal accelerator pedal position sensor for use when converting to a DBW throttle system.

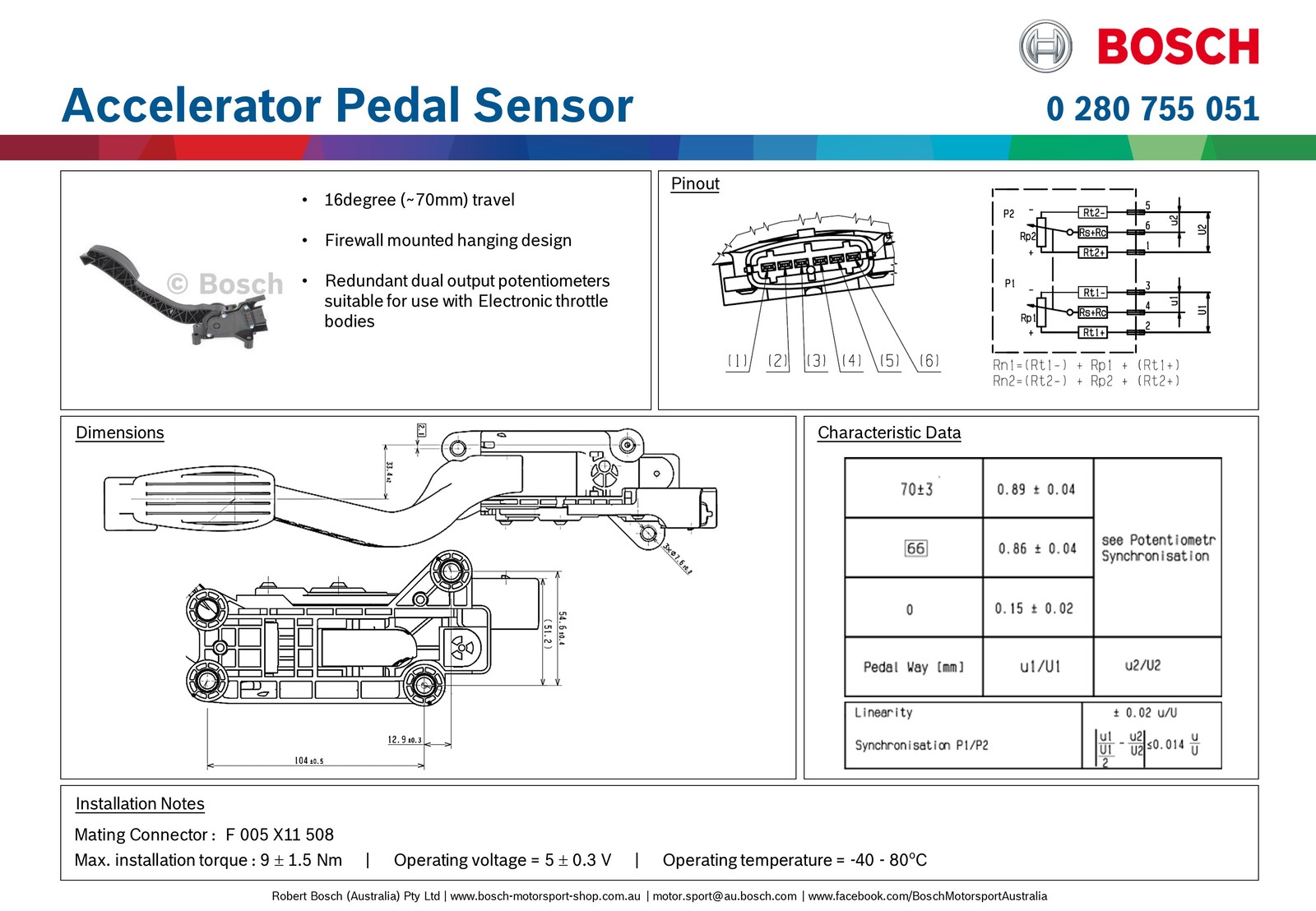

*** Wiring Diagram at bottom of page
"Related Downloads" ***

Details

- 16degree (~70mm) travel
- Firewall mounted hanging design
- Redundant dual output potentiometers suitable for use with Electronic throttle bodies
- Use 6-pin Compact mating connector H-MODL6C


RELATED PARTS / TECHNICAL DOCUMENTS:

PART NUMBERDESCRIPTIONIMAGE
H-MODL6C6 Pin Bosch Connector
804-082Bosch 82mm Throttle Body
804-082FWeld on Flange to suit 82mm Throttle Body
