HomeIntake HardwareThrottle Body Injection KitRotary

Pro-Race Mazda 20B ITB Kit with 130/160 Spacing

In Stock

Product Code: 805-007

$3,322.00
inc GST for Australian Customers
AUD $3,020.00 (ex GST)
for International Customers
1,554.74
GBP
1,855.40
EUR
3,318.22
NZD
301,955.18
JPY
2,037.44
USD
approximate only?International prices are based on the tax exclusive amount, and are approximate only (may change when payment is processed).

All orders are charged in AUD

Options:








This Mazda 20B ITB Pro-Race Kit enables all three runners to be equal length and parallel for optimum and equal flow to each rotor.

Weber IDA style Throttle Bodies with choice of 55mm parallel bore size, or 55/53/50mm tapered bore with high flow shaft and fasteners. Both sizes use special High Flow profile ram tubes for extra power gains.

OPTIONS:
- Throttle Size and Type (parallel vs tapered bore)
- Throttle Position Sensor
- Fuel Injectors
- Inlet Manifold options/ Weld on Flange

** some photos show kit with spun high flow ram tubes and clamp now one piece billet or option listed**

Details

PRODUCT OPTIONS INFORMATION:

55mm Parallel bore

OR

55/53/50mm Tapered bore (55mm ram tube, 53mm butterfly and tapered to a 50mm opening at the manifold flange)


Air Inlet options

65mm Long Hi flow Billet Ram Tube

95mm Long High Flow Spun Ram Tube

70mm Long Pro Series 55mm Spun Ram Tube


Manifold or Weld on flange Options



EXTRA FLOW RAM TUBES:

To give you the most power and torque, we are supplying this kit with our highest flowing Ram Tubes.


 - CLICK IMAGE TO DOWNLOAD -


 You can check out the Extra Flow Ram Tubes here




FULLY ASSEMBLED VS SUB ASSEMBLED KIT:

We want to supply your Throttle Body Kit just the way you want it.


That's why we offer both Sub Assembled Kits, and Full Assembled Kits.


FULLY ASSEMBLED KIT:

By choosing the Fully Assembled Option above, you will receive:

- Each of your Throttle Bodies is precision factory assembled

- Throttle Shafts cut to correct lengths to suit your manifold

- Linkages are fitted and adjusted to ensure correct and smooth operation

  Note: Although we will supply a great linkage fitment, final linkage adjustment

  can only be carried out once the engine is running

- TPS "D" drive on the end of the shaft you stipulate so it's in the best position on your engine

- We may contact you with a few questions to ensure we supply the kit assembled to best

  suit your application


SUB ASSEMBLED KIT:

By choosing the Sub Assembled Option above, you will receive:

- Each of your Throttle Bodies is precision factory assembled

- Throttle Shafts are left long so you can trim them to suit your engine and manifold

- Linkages are supplied for you to fit and adjust once you have trimmed your Throttle Shafts




LINKAGE AND RAM TUBE COLOURS:


Due to overwhelming demand from our customers, we are transitioning our standard colour from Blue to Black.  Black is a classic colour, and goes with pretty much every engine bay colour and style.


This includes Ram Tubes, Linkages, Cable Pulleys, Drop Links, Bell Cranks, and more.


Don't worry if you love blue, you can still get your kit in blue.  There will be a small premium of $40 per kit to cover us sending out your kit of parts to be anodized blue.  If you would like blue anodizing, please let us know by typing in the notes area of your order.




QUALITY ASSURANCE:


Every single throttle bore and throttle plate are measured and matched as a pair to ensure the most perfect throttle fit and consistency across every EFI Hardware throttle body.

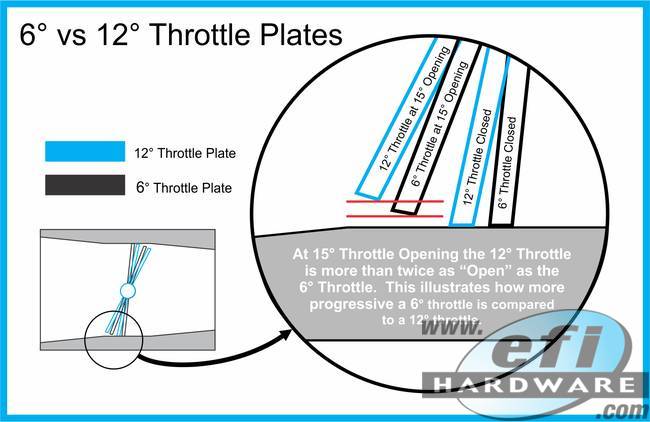

EFI Hardware produce 6° Throttle Plates.


In the past, 12° throttle plates were the industry standard.  The problem with 12° throttle plates, is that as the plates are moved off the closed position, the change in airflow is huge.  It makes it very difficult to drive smoothly at lower throttle openings.


At EFI Hardware, we only use 6° throttle plates.  This improves off idle and cruise driveability making your vehicle far more enjoyable to drive.





BOOSTED VS NATURALLY ASPIRATED:

We have lip seals behind the throttle shaft bearings to stop grease from being sucked out of the bearings under high intake runner vacuum. These are turned around on boosted applications so there is no boost leakage and also stops the bearing grease getting evacuated from the throttle shaft the bearings.


We ask you if you are going to run your engine Boosted, or Naturally Aspirated so we can install the Lip Seals in your throttle bodies in the appropriate way to suit your application.



GETTING THE RIGHT BALANCE:


The best idle and cruise quality will only occur when every throttle has exactly the same airflow.

The only way to achieve this is to adjust the linkages and/or idle bypass screws and use a tool to measure the airflow at each throttle.


Getting the right balance is not a should, it is a MUST.


PART NUMBERDESCRIPTIONIMAGE
880-100throttle body sync tool

SKF_Racing_Logo

We now recommend

and use SKF bearings.



ACCESSORIES:

PART NUMBERDESCRIPTIONIMAGE
840-018-5050mm 20B ITB Weld On Flange
840-018-5555mm 20B ITB Weld On Flange
