Deutsch HD30 Series Kit with Female Sockets in Plugs & Male Pins In Receptacles
In Stock
Product Code: D-HD30-18-8SRKIT
$129.69
inc GST for Australian CustomersAUD $117.90 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $117.90 (ex GST)
for International Customers
63.69
GBP70.79
EUR126.73
NZD8,473.59
JPY78.62
USD
GBP70.79
EUR126.73
NZD8,473.59
JPY78.62
USD
approximate only
Options:
Deutsch HD30 Series Kit with Female Sockets in Firewall Plug & Male Pins In Loom Receptacle
Following are the part number we keep in stock (Most Popular) others only take additional 48 hrs to procure.
D-HD-30-18-14SRKIT Size 18 Shell 14 Size 16 Pins and Sockets.

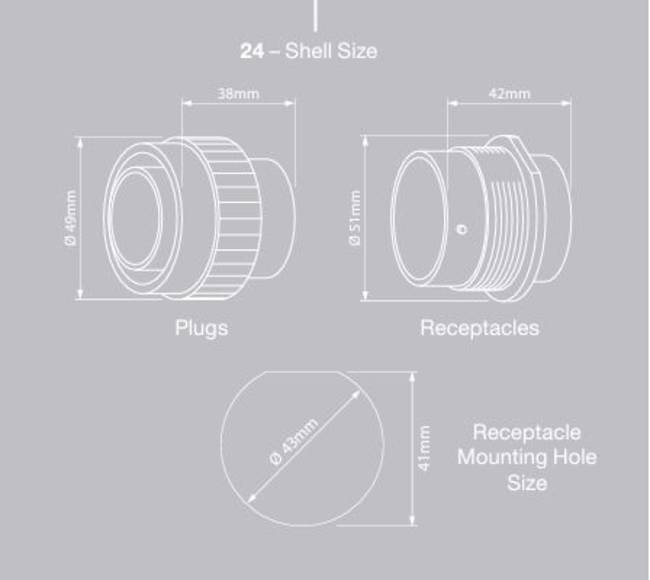

D-HD30-24-31SRKIT Size 24 Shell 31 Size 16 Pins and Sockets.
D-HD30-24-35SRKIT Size 24 Shell 3 Size 16 & 32 size 20 Pins and Sockets..
D-HD30-24-47SRKIT Size 24 Shell 5 Size 16 & 42 size 20 Pins and Sockets.
Also in PR version (Male Pins in Plugs and Female Sockets in Receptacles)
D-HD-30-18-21PRKIT Size 18 Shell 21 Size 20 Pins and Sockets.
D-HD30-24-31PRKIT Size 24 Shell 31 Size 16 Pins and Sockets.
D-HD30-24-47PRKIT Size 24 Shell 5 Size 16 & 42 Size 20 Pins and Sockets.
Details
WHAT'S IN THE KIT:
1 x Deutsch HD30 Series Bulkhead Plug (this is the part you mount through your firewall/panel, etc.
This Plug is configured to house the Female Pins that come in the kit.
1 x Deutsch HD30 Series Receptacle (this is the part you plug into the Plug).
This Receptacle is configured to house the Male Pins that come in the kit.
X x Number of Pins and Sockets that correspond to the particular connector kit your have selected.
Environmentally Sealed to IP67, when installed to manufactures specs.
Up to 47 circuits
Current capacity from 7.5 A up to 60
To view all the HD30 Connector options click on the thumbnail below
WIRE DIAMETER GUIDE:
| TERMINAL SIZE | TERMINAL CURRENT RATING | MAXIMUM WIRE CONDUCTOR DIAMETER |
| SIZE 20 | 7.5A | 1.3mm |
| SIZE 16 | 13A | 1.6mm |
| SIZE 16 GREEN BAND | 13A | 2.0mm |
| SIZE 12 | 25A | 2.8mm |
| SIZE 8 | 60A | 4.6mm |
DEUTSCH HD30 SERIES ACCESSORIES:
| PART NUMBER | DESCRIPTION | IMAGE |
| D-WHDS-18-1 | Size 18 Strain Relief - Straight |  |
| D-WHDS-18-2 | Size 18 Strain Relief - 90 Degree |  |
| D-WHDS-24-1 | Size 24 Strain Relief - Straight |  |
| D-WHDS-24-2 | Size 24 Strain Relief - 90 Degree |  |
