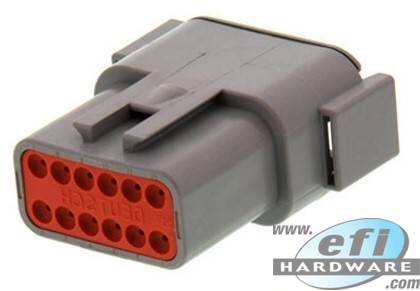

Deutsch DTM Socket - 12 Way & Wedgelock CLICK HERE FOR PRICE QUANTITY BREAKS
In Stock
Product Code: D-DTM04-12P-W
$10.01
inc GST for Australian CustomersAUD $9.10 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $9.10 (ex GST)
for International Customers
4.53
GBP5.15
EUR10.38
NZD918.09
JPY5.95
USD
GBP5.15
EUR10.38
NZD918.09
JPY5.95
USD
approximate only
Bulk Pricing:
| 1+ | $9.10 |
| 25+ | $8.19 |
| 50+ | $6.83 |
| 100+ | $6.37 |
The Deutsch DTM Plug holds Size 20 Male Terminal Pins. This part ships with Terminal Locking Wedge.
Details
WIRE DIAMETER GUIDE:
| TERMINAL SIZE | TERMINAL CURRENT RATING | MAXIMUM WIRE CONDUCTOR DIAMETER |
| SIZE 20 | 7.5A | 1.3mm |
| SIZE 16 | 13A | 1.6mm |
| SIZE 16 GREEN BAND | 13A | 2.0mm |
| SIZE 12 | 25A | 2.8mm |
| SIZE 8 | 25A | 4.6mm |
TOOLS:
| PART NUMBER | DESCRIPTION | IMAGE |
| D-1011-026-205 | DTM Mounting Clips |  |
| D-DET20 | Deutsch size 20 crimp tool |  |
| 880-250 | Deutsch Multi-size crimp tool |  |
| D-DET-RT | Deutsch Multi-use tool |  |
| D-0411-204-1605 | Deutsch Removal tool size 16 |  |
| D-0411-240-2005 | Deutsch Removal tool size 20 |  |
