HomeElectrical Connectors and PlugsDeutsch Plug Connector KitsDeutsch DT 'CAT-Spec'
Deutsch DT CAT Spec Connector Kit Various
In Stock
Product Code: D-DTKIT-1-VARIOUS-CAT
$293.15
inc GST for Australian CustomersAUD $266.50 (ex GST)
for International Customers
inc GST for Australian CustomersAUD $266.50 (ex GST)
for International Customers
151.39
GBP176.42
EUR294.92
NZD24,990.00
JPY183.36
USD
GBP176.42
EUR294.92
NZD24,990.00
JPY183.36
USD
approximate only

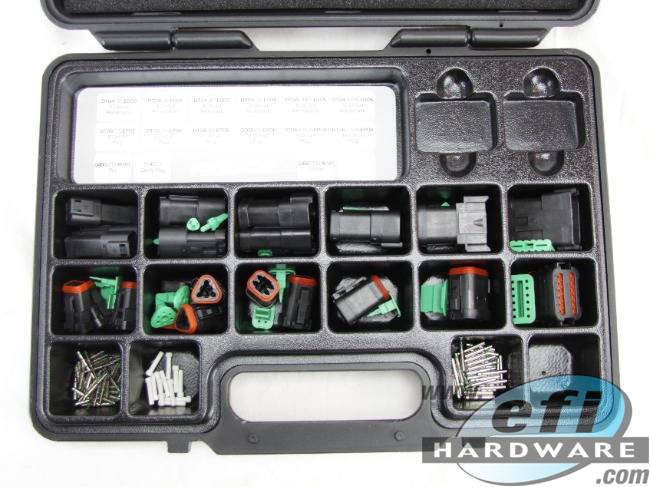

Great Deutsch DT Series 'CAT-Spec' Connector Starter Kit.
Details
KIT CONTAINS:
3 x DT04-2P-E005 Receptacle and Wedge
3 x DT06-2S-EP06 Plug and Wedge
3 x DT04-3P-E005 Receptacle and Wedge
3 x DT06-3S-EP06 Plug and Wedge
2 x DT04-4P-E005 Receptacle and Wedge
2 x DT06-4S-EP06 Plug and Wedge
1 x DT04-6P-E005 Receptacle and Wedge
1 x DT06-6S-EP06 Plug and Wedge
1 x DT04-08PA-E005 Receptacle and Wedge
1 x DT06-08SA-EP06 Plug and Wedge
1 x DT04-12PA-E005 Receptacle and Wedge
1 x DT06-12SA-EP06 Plug and Wedge
12 x 114017 Sealing Blank
40 x 0460-215-16141 Solid Pin Green Band 13A
40 x 0462-209-16141 Solid Socket Green Band 13A
NOTE: Pins and Sockets are included in this kit.
WIRE DIAMETER GUIDE:
| TERMINAL SIZE | TERMINAL CURRENT RATING | MAXIMUM WIRE CONDUCTOR DIAMETER |
| SIZE 20 | 7.5A | 1.3mm |
| SIZE 16 | 13A | 1.6mm |
| SIZE 16 GREEN BAND | 13A | 2.0mm |
| SIZE 12 | 25A | 2.8mm |
| SIZE 8 | 25A | 4.6mm |
TOOLS:
| PART NUMBER | DESCRIPTION | IMAGE |
| D-DET16 | Deutsch size 16 crimp tool |  |
| D-DET20 | Deutsch size 20 crimp tool | |
| 880-250 | Deutsch Multi-size crimp tool |  |
| D-DET-RT | Deutsch Multi-use tool |  |
| D-0411-204-1605 | Deutsch Removal tool size 16 |  |
| D-0411-240-2005 | Deutsch Removal tool size 20 |  |
