Product Code: 851-550S
inc GST for Australian CustomersAUD $90.00 (ex GST)
for International Customers

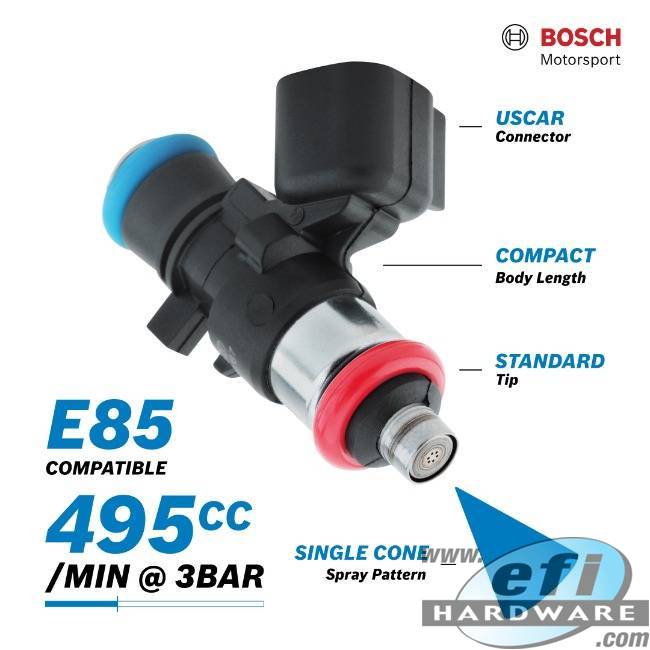

EV14 Half Height Injector with optional Injector Height Adapters with either 11mm or 14mm top orings to suit your fuel rail.
THIS INJECTOR IS E85 COMPATIBLE.
76 HP Normally Aspirated - estimated (pump petrol)
63 HP Turbo up to 1 Bar Boost - estimated (pump petrol)
58 HP Turbo up to 2 Bar Boost - estimated (pump petrol)
> Flow Rate - 550cc/min (52Lb/Hr) @4.0Bar
> Flow Rate - 460cc/min (47Lb/Hr) @3.0Bar
> ORings - 14mm Top / 14mm Bottom
> Electrical Plug - USCAR (Oval)
> Impedance - 12.0 Ohms (High)
> Spray Pattern -
> Oring Top to Bottom / Center to Center without Height Adapter - 38.0mm
> Oring Top to Bottom / Center to Center with 11mm Top Oring Height Adapter - 64.5mm
> Oring Top to Bottom / Center to Center with 14mm Top Oring Height Adapter - 64.5mm
> Manufacture - Bosch - Part Number 0 280 158 187
> Manufacture - GM- Part Number > 12598646
Suits GM LS3 engine.
This injector is what is called a "Half Height" injector. Half Height injectors are generally around 38mm from the centre point of the top oring, to the centre point of the bottom oring. This is approximately 26mm shorter than what is called a Standard Height injector.
If your fuel rail is setup for standard length injectors (64.5mm from oring centre to oring centre), you will need to use an Injector Height Adapter to make these injectors the same length as your original injectors so that your new, hi-flow injectors "seat and seal" correctly into your fuel rail (top injector oring), and your manifold (bottom injector oring).
Additionally, your fuel rail may be designed to use injectors with 14mm or 11mm diameter top orings. You can now choose which injector combination you need in the drop down menu in the pricing area on this page.
The Injector Height Adapters have an Injector Clip that secures the Injector Height Adapter onto the injector improving the stability of the connection between the two.
INJECTOR CONNECTORS TO SUIT:
Replacement injectors are only as good as the wiring, pins and plugs that supply current
and voltage to them.
This is an ideal time to check your injector plugs and pins for signs of pin corrosion, pins
splayed open and crumbling plastic connectors.
If in doubt, it can be cheap insurance to replace your injector connectors with brand new items to ensure positive electrical connections.
|H-INJP5||injector plug kit for uscar injector|
|852-LOOM1||USCAR Injector to Bosch Loom Wired Adapter|
|852-LOOM3||USCAR Injector to Bosch Loom Hard Adapter|
|852-LOOM5||USCAR Injector to Nissan Loom Wired Adapter|
|852-LOOM9||USCAR Injector to Denso Loom Wired Adapter|
|852-LOOM10||USCAR Injector to Denso Loom Hard Adapter|
