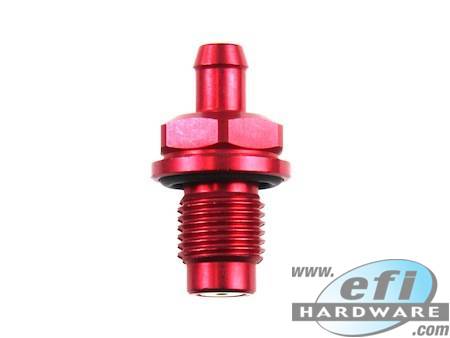

rollover vent valve 9/16" to 8mm nipple

In Stock

Product Code: SE-TRV68

$126.50
inc GST for Australian Customers
AUD $115.00 (ex GST)
for International Customers
65.33
GBP
76.13
EUR
127.27
NZD
10,783.68
JPY
79.13
USD
approximate only?International prices are based on the tax exclusive amount, and are approximate only (may change when payment is processed).

All orders are charged in AUD

Details

The object of a vent valve is to let air into the tank as the fuel level drops, and to stop fuel escaping.


The valves are installed as per illustration. The thread or standpipe at the top is where the air enters. It passes through the valve, exiting into the tank through a hole in the side of the valve body.


The amount of air drawn into the tank through the valve is equal to the volume of fuel drawn from the tank.


In the valve are two balls, one hollow plastic, and one stainless steel. If fuel enters the valve while the vehicle is cornering or braking, the hollow ball floats on the top of the fuel and moves to the top of the valve where it seals, so stopping fuel escaping.


If there is a roll over, and the vehicle ends up upside down, it is possible that the hollow ball might leave the seat and allow fuel to escape. The weight of the stainless ball keeps the hollow ball on its seat, and fuel cannot then escape.
