Product Code: 850-120/1AK
inc GST for Australian CustomersAUD $127.00 (ex GST)
for International Customers
Fuel Tank EFI Conversion Kit for Alloy Tank 255 to 305mm high for use with a VT-VY Commodore Modular Reserve Assembly (Not Supplied in this kit.)
Base plate Diameter 139mm
Comes with weld on base plate, top plate, cap screws, washers & oring.
Electrical plug and Quick disconnect to push on hose fittings also supplied.
Weld in Ring is 139.6mm OD

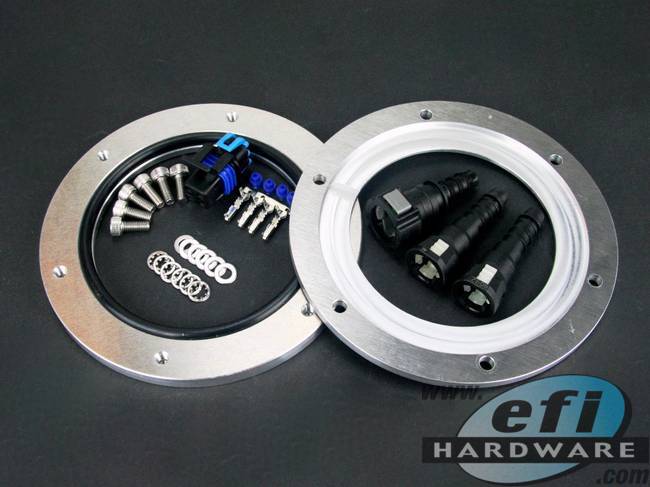

WHAT'S IN THE BOX:
Top Plate: Aluminium
Bottom Plate: Aluminium
Seal: Fuel Safe O-Ring
Electrical Connector: To suit Holden VT MRA PN# 850-120P
Quick Disconnect Fuel Fittings: 1 x 3/8", 2 x 5/16"
Fasteners: 6 x M5 Stainless Steel Cap Screws with Washers and Locking Washers
The compatible Holden Commodore VT MRA unit houses the Fuel Pump, Surge Tank (with return Mazzi Jet), fuel submersible wiring and fuel hose with bulk head assembly in one unit. It is spring loaded to ensure that it sits on the bottom of the fuel tank for maximum fuel scavenging.
