Weld in EFI fuel pump conversion kit suits tanks 255mm to 320mm high

In Stock

Product Code: 850-121S

$341.00
inc GST for Australian Customers
AUD $310.00 (ex GST)
for International Customers
170.69
GBP
190.66
EUR
327.73
NZD
23,032.68
JPY
215.45
USD
approximate only?International prices are based on the tax exclusive amount, and are approximate only (may change when payment is processed).

All orders are charged in AUD

Fuel Tank EFI Conversion Kit for Steel Tank 255 to 305mm high using VT Commodore MRA (Modular Reserve Assembly).
This MRA has a high pressure fuel outlet, a return line and a breather line. Quick disconnect inlet, outlet and breather connectors on top. Comes with weld on base plate, top plate, cap screws, washers & oring.
Electrical plug and Quick disconnect to push on hose fittings also supplied.

Weld in Ring is 139.6mm OD

Details

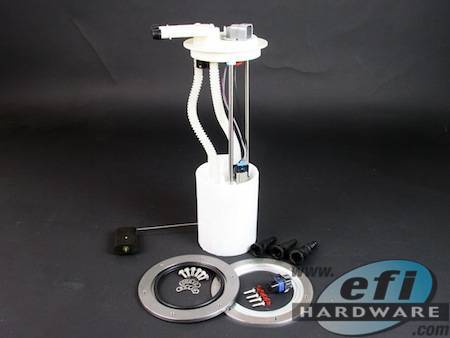

WHAT'S IN THE BOX:


MRA: VT S1 V8  Modular Reserve Assembly (fuel pump)

Weld on Plate:  Steel

Clamp Plate:  Aluminium

Base plate diameter:  139mm

Fuel pressure regulator: No internal regulator

Electrical Connector:  To suit VT-  850-120E

Quick Disconnect Fuel Fittings:   2x 10mm  to 10mm barb  2x 8mm to 8mm barb

Fasteners:  6 x M5 Stainless Steel Cap Screws with Washers and Locking Washers

O-Ring:  Fuel safe O-Ring

Max tank height: 255mm

Min tank height: 310mm

HP rating: 500HP @ 4 BAR

The MRA unit houses the Fuel Pump, fuel reservoir (with return venturi jet for constant siphoning   ), fuel submersible wiring and fuel hose with bulk head assembly in one unit. It is spring loaded to ensure that it sits on the bottom of the fuel tank for maximum fuel scavenging.


No need for a lift pump, surge tank, high pressure pump and external regulator, it is all neatly housed inside the fuel tank, reducing noise and fuel odour inside the cabin.
