Weld in return less EFI fuel pump conversion kit suits tanks 255mm to 320mm high

In Stock

Product Code: 850-120S

$418.00
inc GST for Australian Customers
AUD $380.00 (ex GST)
for International Customers
211.40
GBP
234.69
EUR
403.88
NZD
28,372.03
JPY
263.91
USD
approximate only?International prices are based on the tax exclusive amount, and are approximate only (may change when payment is processed).

All orders are charged in AUD

Dead End Fuel Tank EFI Conversion Kit for Steel Tank 255 to 305mm high using VX Commodore MRA (Modular Reserve Assembly).
Ideal for an LS conversion.
This MRA uses an inbuilt fuel pressure regulator set at 58 PSI (4BAR). It has 1 high pressure fuel outlet, 1 return line and 1 breather line. Quick disconnect inlet, outlet and breather connectors on top.

Weld in Ring is 139.6mm OD

Details

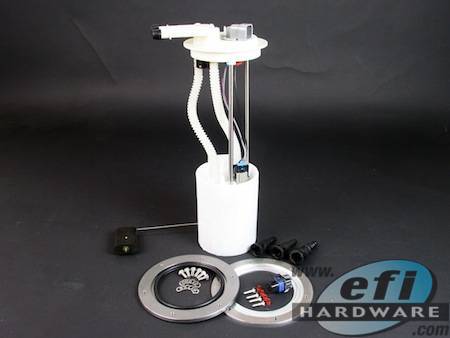

WHAT'S IN THE BOX:

MRA: VX Commodore LS1 Modular Reserve Assembly (fuel pump)
Weld on Plate:  Steel
Fuel pressure regulator: 58PSI (4 BAR)
Clamp Plate:  Aluminum
Electrical Connector:  To suit VX-VY Commodore-   P/N 850-120E
Quick Disconnect Fuel Fittings:  2 x 10mm  to 10mm barb , 2 x 8mm to 8mm barb
Fasteners:  6 x M5 Stainless Steel Cap Screws with Washers and Locking Washers
O-Ring:  Fuel safe O-Ring

For Steel fuel tanks  255mm to 305mm high.

The MRA unit houses the Fuel Pump, Surge Tank (with return venturi jet), fuel submersible wiring and fuel hose with bulk head assembly in one unit. It is spring loaded to ensure that it sits on the bottom of the fuel tank for maximum fuel scavenging.

No need for a lift pump, surge tank, high pressure pump and external regulator, it is all neatly housed inside the fuel tank, reducing noise and fuel odour inside the cabin.



Associated components



PART NUMBERDESCRIPTIONIMAGE
850-120SInstructions
867-018KQuick Connector Fuel Filter Kit
860-048L10mm Brass Tee Piece
S-400-06GB10mm 3/8 Gates Barricade Fuel Hose
S-715-06-0610mm Quick Connect to -6AN
S-715-08-0610mm Quick Connect to -8AN
